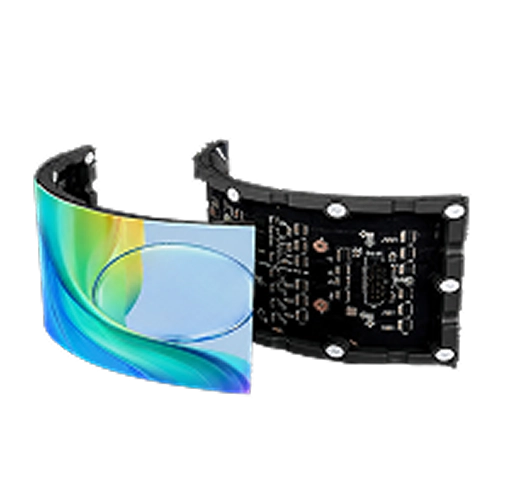

High Quality Indoor Flexible LED Module P2.5
The P2.5 flexible LED module delivers dependable indoor image quality with adaptable soft construction, making it ideal for large curved displays, stage scenery, retail spaces, and creative commercial installations.
Specification
High Quality Indoor Flexible LED Module P2.5 Specification
With a 2.5 mm pixel pitch, flexible module structure, stable refresh performance, and scalable assembly, this model is optimized for medium-distance indoor viewing and larger creative LED projects.
Pixel Pitch
2.5mm
Pixel Density
160000dots/㎡
Module size
320x160mm
Module Resolution
160*80dot
Brightness Intensity
>500CD/㎡
Gray Scale
14bit
Display Scale
16.7M
Drive Mode
1/32S
Refresh Frequency
3840HZ
Features
High Quality Indoor Flexible LED Module P2.5 Features
The P2.5 flexible module focuses on practical screen scaling, reliable bending, smooth motion display, and efficient integration for commercial environments where screen size and flexibility are key.
01
Ultra-Fine Pixel Pitch Display Precision
The 2.5 mm pixel pitch provides clear commercial graphics, video, and promotional text at medium indoor viewing distances, offering a cost-efficient balance between resolution and screen coverage.
02
Flexible Soft Module Bending Design
Its soft PCB-based module construction adapts to selected arcs, cylinders, rounded corners, and wave-shaped structures, allowing large-format creative displays to follow architectural forms more naturally.
03
High Refresh Rate & Stable Image Output
Stable refresh performance supports smooth video playback, animated advertising, and event content while helping multi-module curved screens maintain synchronized image output across larger installations.
Advantages
High Quality Indoor Flexible LED Module P2.5 Advantages
P2.5 flexible modules combine cost-efficient screen scaling, adaptable geometry, easy handling, and dependable visual performance for larger indoor installations viewed from moderate distances.
Seamless Curved Surface Installation
The flexible P2.5 structure supports wide curved installations with fewer mechanical constraints, helping commercial projects achieve smooth transitions across large-format architectural and scenic display surfaces.

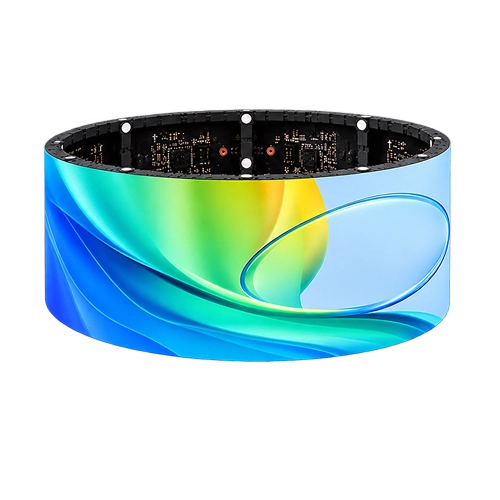

Large-Format Curve Efficiency
P2.5 is particularly suitable for broad curved displays where screen area is more important than ultra-close pixel density. Its flexible structure enables designers to cover large architectural surfaces while keeping module quantity and overall project cost more manageable.
Wide Radius Display Design
The module can follow gradual arcs and large-radius curved frameworks used in retail halls, stages, and public interior spaces. This makes it effective for expansive visual features where rigid cabinets would require complex segmented structures to achieve a similar shape.
Smooth Scenic Integration
For stage and event environments, P2.5 flexible modules can be incorporated into curved scenery, decorative structures, and immersive backgrounds. Proper alignment helps visual content flow continuously across the shaped display instead of appearing as separate flat sections.
Commercial Scale Expansion
The practical pixel density of P2.5 supports larger screen dimensions without excessive hardware density. Integrators can expand the display across walls, columns, and architectural features while maintaining suitable image quality for medium-distance indoor audiences.
Lightweight & Easy Maintenance Structure
The lightweight flexible module format simplifies handling across large installations and enables localized servicing, helping reduce structural demands and maintenance effort in permanent or event-based projects.

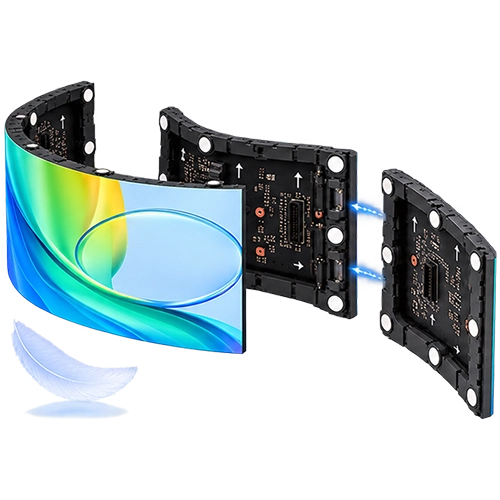

Efficient Multi-Module Handling
Large P2.5 screens often require many modules, so lightweight construction can significantly reduce repetitive handling during installation. This supports faster positioning and alignment across stage structures, mall features, and wide curved commercial display walls.
Simplified Service Replacement
Individual modules can be accessed and replaced within the larger screen when maintenance access is properly designed. This section-based approach helps technicians address localized faults without removing extensive portions of a large creative installation.
Excellent Color Uniformity & Brightness Control
Consistent calibration helps P2.5 flexible modules maintain balanced brightness and color across wide curved displays, supporting cohesive commercial visuals under varied indoor lighting conditions.

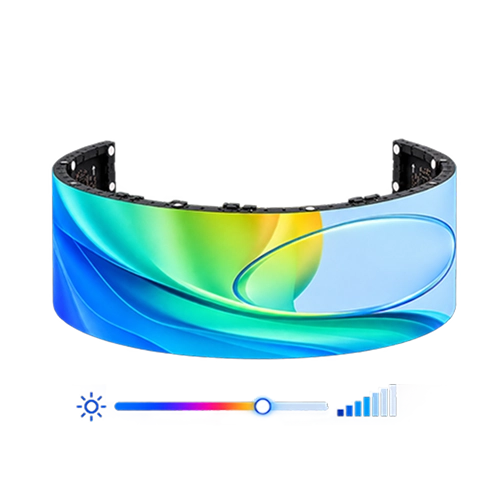

Large-Area Brightness Matching
Wide P2.5 installations may include dozens of modules across different orientations. Brightness calibration helps reduce visible differences between sections, keeping large promotional graphics and video content visually balanced across the complete screen.
Event Lighting Adaptability
Stage and exhibition lighting conditions can change significantly throughout an event. Adjustable brightness allows the display to remain visible without overpowering nearby lighting, helping content maintain suitable contrast in dynamic indoor environments.
Consistent Promotional Colors
Retail campaigns and event branding often depend on recognizable color palettes. Controlled module calibration helps logos, product colors, and graphic backgrounds remain more consistent across curved display surfaces used for commercial promotion.
Balanced Multi-Zone Viewing
Large curved screens are often viewed from several zones rather than one fixed position. Careful luminance and color adjustment helps improve perceived consistency as audiences move along the display or view it from different angles.
APPLICATION SHOWCASE
High Quality Indoor Flexible LED Module P2.5 Applications
P2.5 flexible LED modules are suited to large curved walls, stages, exhibition structures, mall installations, cylindrical displays, studio scenery, and branded environments needing scalable creative screens.
Creative Curved LED Wall Installations
Cylinder & Ring-Shaped LED Screens
Exhibition Booth Curved Displays
Shopping Mall Immersive Visual Screens
Broadcast Studio Creative Background Walls
Brand Store LED Creative Display Walls
Creative Curved LED Wall Installations
P2.5 modules are well suited to large curved feature walls in commercial halls, entertainment venues, and public interiors where wide screen coverage and architectural integration are more important than ultra-close resolution.
Cylinder & Ring-Shaped LED Screens
The flexible structure can wrap around broad columns and circular frameworks to create cylindrical or ring-shaped displays for atriums, stages, entertainment venues, and commercial interior landmarks.
Exhibition Booth Curved Displays
Trade show booths can use P2.5 modules for large curved backdrops, overhead structures, entrances, and scenic display elements that deliver strong brand visibility while remaining practical for temporary installation.
Shopping Mall Immersive Visual Screens
Shopping malls can deploy P2.5 flexible modules across atriums, curved walls, and experiential zones to create large digital environments that attract attention from multiple floors and viewing directions.
Broadcast Studio Creative Background Walls
P2.5 flexible modules can form large studio backdrops, curved scenic walls, and decorative set elements where camera distance is greater and broad visual coverage is more important than extreme fine-pitch detail.
Brand Store LED Creative Display Walls
Retail brands can use P2.5 modules for large curved campaign walls, architectural features, and immersive product zones that transform interior surfaces into dynamic promotional media.
Certifications
High Quality Indoor Flexible LED Module P2.5 Certifications
Compliance review for P2.5 flexible modules should consider electrical integration, commercial operating conditions, material controls, and documentation relevant to large-format indoor LED installations.
CE Certification
Large-System CE Compliance Assessment
For P2.5 modules used in larger LED walls or event systems, CE-related review should consider power distribution, control equipment, cabling layout, and EMC interaction across the completed installation. Buyers should confirm documents for the actual supplied system.
RoHS Compliant Materials
Material Compliance for Scaled Production
RoHS-related review should cover flexible PCB materials, solder, connectors, LED packages, wiring, and electronic components used across larger production quantities. Buyers should verify declarations and batch-level records for the supplied modules.
Video Introduction
High Quality Indoor Flexible LED Module P2.5 Video
FAQ
High Quality Indoor Flexible LED Module P2.5 FAQ
Review common questions about P2.5 flexible LED modules, including viewing distance, screen size, curved installation, event use, maintenance, and selection for larger commercial indoor projects.
Why choose P2.5 flexible LED modules for large indoor displays?
P2.5 offers a practical balance between image quality, viewing distance, module quantity, project cost, and screen coverage, making it particularly suitable for large curved installations where ultra-fine pixel density is unnecessary.
What viewing distance is most suitable for P2.5 flexible LED modules?
P2.5 is generally intended for medium indoor viewing distances rather than extremely close inspection, making it well suited to malls, stages, exhibitions, event venues, and larger commercial interiors.
Is P2.5 a good choice for stage and event applications?
Yes. Its flexible form, scalable screen area, and practical pixel density make it suitable for curved stage scenery, event backdrops, branded structures, and temporary indoor installations where audiences typically view from several meters away.
How does P2.5 help reduce the cost of a large curved LED project?
Compared with finer pitches such as P1.25 or P1.538, P2.5 uses fewer pixels over the same screen area, which can reduce module density, control-system requirements, and overall project cost while still providing suitable indoor visual quality.
When should P2.5 be selected instead of P2 flexible LED modules?
P2.5 is often preferable when the display area is larger, viewers are positioned farther from the screen, and the project prioritizes scalable coverage and cost efficiency over the additional close-range detail provided by P2.
